Rotary Paddle Type Level Switch

Rotary Paddle Type Level Switch

Rotary Paddle Type Level Switch Since our founding in 1969,we have been a leader in power technology specializing in level meters. Out expertise has enabled us to radically improve paddle type level switches,and we maintain an ongoing high market share by providing different unique products to meet diversified customer needs.

FEATURES

  • No calibration required
  • Wide range detection for Low density to high density of materials.
  • Simple mechanism,Robust against vibration and shock,Low cost , easy to install and setup.

Specification Catalog

Rotary Paddle Type Level Switch product number , specifications ...

Terminal connection Specification drawings Outline dimensions

*PDF for each type of catalog will be shown if click the model.
TYPE FEATURE DIMENSIONS PDF

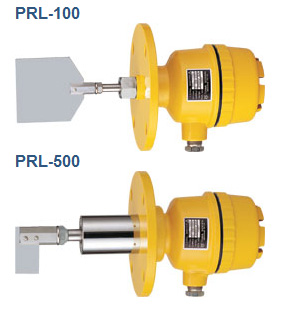

PRL-100 STANDARD PDF
PRL-170 PDF
PRL-101 PROTECTION TUBE PDF
PRL-100EB Extension shaft Vertical mounting PDF
PRL-100ED PDF
PRL-200 High temperature PDF
PRL-500 Heavy duty PDF
PRL-S5 Explosion proof version PDF
PRL-G5-25 PDF
PA-1 Conveyer flow switch PDF
PAF-1 PDF
PT-1E PDF

Installation Manual

In addition to the above specifications, we will manufacture according to any specifications. Consult our sales staff for selecting models and specifications.
